只做指路人，修行在个人：
1，STC32G12K128库函数下载路径：

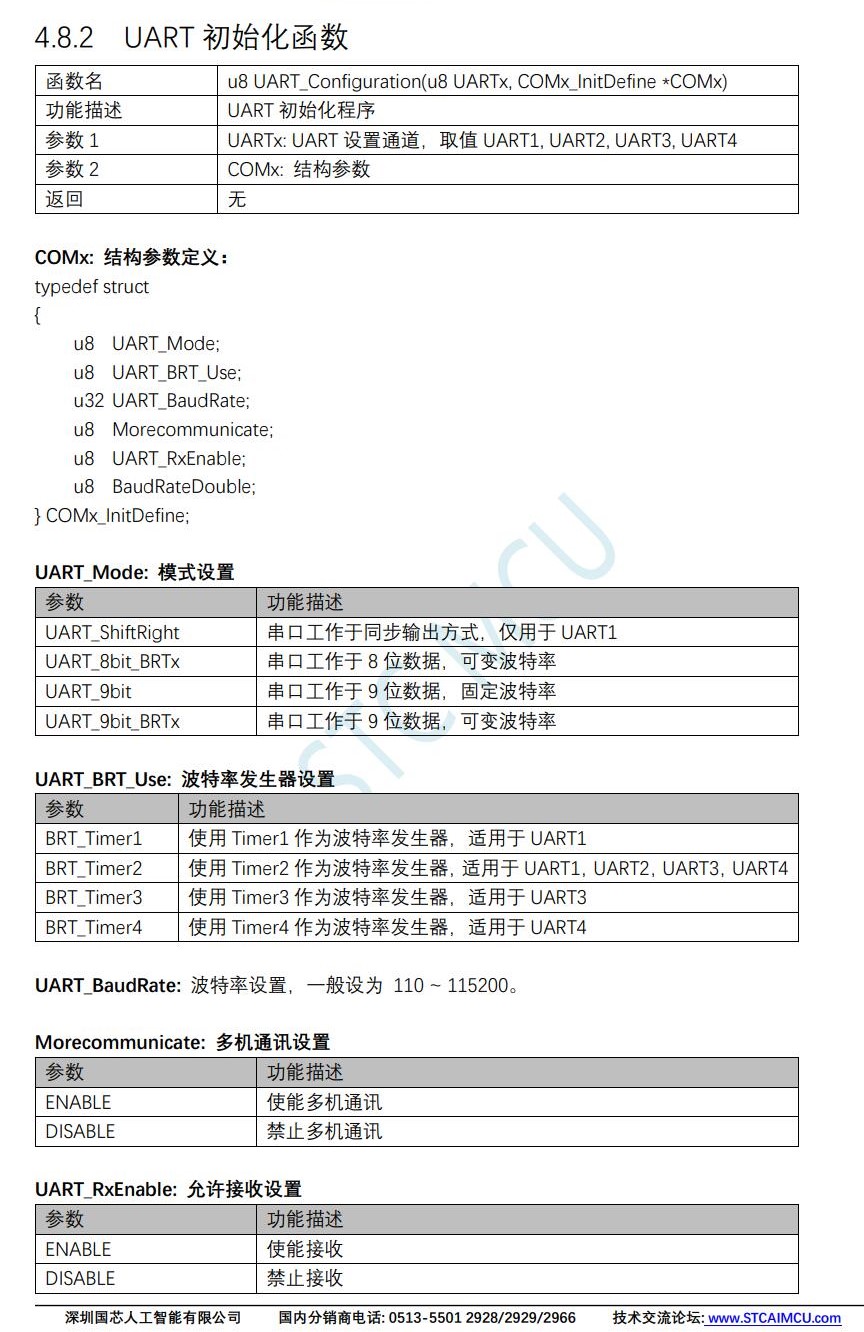

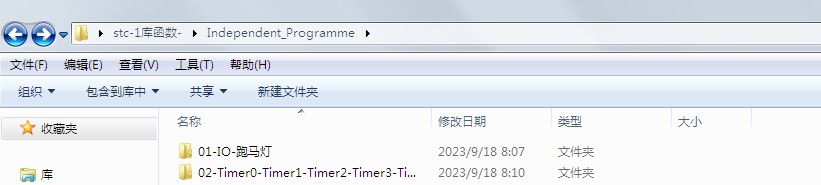

2,范例程序文件夹如下：
3.Timer0-Timer1-Timer2-Timer3-Timer4测试程序
#include "config.h"
#include "STC32G_Timer.h"
#include "STC32G_GPIO.h"
#include "STC32G_NVIC.h"
/************* 功能说明 **************
程序演示5个定时器的使用, 均使用16位自动重装.
定时器0做16位自动重装, 中断频率为100000Hz，中断函数从P6.7取反输出50KHz方波信号.
定时器1做16位自动重装, 中断频率为10000Hz，中断函数从P6.6取反输出5KHz方波信号.
定时器2做16位自动重装, 中断频率为1000Hz，中断函数从P6.5取反输出500Hz方波信号.
定时器3做16位自动重装, 中断频率为100Hz，中断函数从P6.4取反输出50Hz方波信号.
定时器4做16位自动重装, 中断频率为50Hz，中断函数从P6.3取反输出25Hz方波信号.
下载时, 选择时钟 24MHz (可以在配置文件"config.h"中修改).
******************************************/
/************* 本地常量声明 **************/
/************* 本地变量声明 **************/
/************* 本地函数声明 **************/
/************* 外部函数和变量声明 *****************/
/************************ IO口配置 ****************************/
void GPIO_config(void)
{
GPIO_InitTypeDef GPIO_InitStructure; //结构定义
GPIO_InitStructure.Pin = GPIO_Pin_HIGH | GPIO_Pin_3; //指定要初始化的IO, GPIO_Pin_0 ~ GPIO_Pin_7, 或操作
GPIO_InitStructure.Mode = GPIO_PullUp; //指定IO的输入或输出方式,GPIO_PullUp,GPIO_HighZ,GPIO_OUT_OD,GPIO_OUT_PP
GPIO_Inilize(GPIO_P6,&GPIO_InitStructure); //初始化
GPIO_InitStructure.Pin = GPIO_Pin_0; //指定要初始化的IO, GPIO_Pin_0 ~ GPIO_Pin_7, 或操作
GPIO_InitStructure.Mode = GPIO_PullUp; //指定IO的输入或输出方式,GPIO_PullUp,GPIO_HighZ,GPIO_OUT_OD,GPIO_OUT_PP
GPIO_Inilize(GPIO_P4,&GPIO_InitStructure); //初始化
}
/************************ 定时器配置 ****************************/
void Timer_config(void)
{
TIM_InitTypeDef TIM_InitStructure; //结构定义
TIM_InitStructure.TIM_Mode = TIM_16BitAutoReload; //指定工作模式, TIM_16BitAutoReload,TIM_16Bit,TIM_8BitAutoReload,TIM_16BitAutoReloadNoMask
TIM_InitStructure.TIM_ClkSource = TIM_CLOCK_1T; //指定时钟源, TIM_CLOCK_1T,TIM_CLOCK_12T,TIM_CLOCK_Ext
TIM_InitStructure.TIM_ClkOut = DISABLE; //是否输出高速脉冲, ENABLE或DISABLE
TIM_InitStructure.TIM_Value = (u16)(65536UL - (MAIN_Fosc / 100000UL)); //初值,
TIM_InitStructure.TIM_Run = ENABLE; //是否初始化后启动定时器, ENABLE或DISABLE
Timer_Inilize(Timer0,&TIM_InitStructure); //初始化Timer0 Timer0,Timer1,Timer2,Timer3,Timer4
NVIC_Timer0_Init(ENABLE,Priority_0); //中断使能, ENABLE/DISABLE; 优先级(低到高) Priority_0,Priority_1,Priority_2,Priority_3
TIM_InitStructure.TIM_Mode = TIM_16BitAutoReload; //指定工作模式, TIM_16BitAutoReload,TIM_16Bit,TIM_8BitAutoReload,TIM_16BitAutoReloadNoMask
TIM_InitStructure.TIM_ClkSource = TIM_CLOCK_1T; //指定时钟源, TIM_CLOCK_1T,TIM_CLOCK_12T,TIM_CLOCK_Ext
TIM_InitStructure.TIM_ClkOut = DISABLE; //是否输出高速脉冲, ENABLE或DISABLE
TIM_InitStructure.TIM_Value = (u16)(65536UL - (MAIN_Fosc / 10000)); //初值,
TIM_InitStructure.TIM_Run = ENABLE; //是否初始化后启动定时器, ENABLE或DISABLE
Timer_Inilize(Timer1,&TIM_InitStructure); //初始化Timer1 Timer0,Timer1,Timer2,Timer3,Timer4
NVIC_Timer1_Init(ENABLE,Priority_0); //中断使能, ENABLE/DISABLE; 优先级(低到高) Priority_0,Priority_1,Priority_2,Priority_3
TIM_InitStructure.TIM_ClkSource = TIM_CLOCK_1T; //指定时钟源, TIM_CLOCK_1T,TIM_CLOCK_12T,TIM_CLOCK_Ext
TIM_InitStructure.TIM_ClkOut = DISABLE; //是否输出高速脉冲, ENABLE或DISABLE
TIM_InitStructure.TIM_Value = (u16)(65536UL - (MAIN_Fosc / 1000)); //初值
TIM_InitStructure.TIM_Run = ENABLE; //是否初始化后启动定时器, ENABLE或DISABLE
Timer_Inilize(Timer2,&TIM_InitStructure); //初始化Timer2 Timer0,Timer1,Timer2,Timer3,Timer4
NVIC_Timer2_Init(ENABLE,NULL); //中断使能, ENABLE/DISABLE; 无优先级
TIM_InitStructure.TIM_ClkSource = TIM_CLOCK_12T; //指定时钟源, TIM_CLOCK_1T,TIM_CLOCK_12T,TIM_CLOCK_Ext
TIM_InitStructure.TIM_ClkOut = ENABLE; //是否输出高速脉冲, ENABLE或DISABLE
TIM_InitStructure.TIM_Value = (u16)(65536UL - (MAIN_Fosc / (100*12))); //初值
TIM_InitStructure.TIM_Run = ENABLE; //是否初始化后启动定时器, ENABLE或DISABLE
Timer_Inilize(Timer3,&TIM_InitStructure); //初始化Timer3 Timer0,Timer1,Timer2,Timer3,Timer4
NVIC_Timer3_Init(ENABLE,NULL); //中断使能, ENABLE/DISABLE; 无优先级
TIM_InitStructure.TIM_ClkSource = TIM_CLOCK_12T; //指定时钟源, TIM_CLOCK_1T,TIM_CLOCK_12T,TIM_CLOCK_Ext
TIM_InitStructure.TIM_ClkOut = ENABLE; //是否输出高速脉冲, ENABLE或DISABLE
TIM_InitStructure.TIM_Value = (u16)(65536UL - (MAIN_Fosc / (50*12))); //初值
TIM_InitStructure.TIM_Run = ENABLE; //是否初始化后启动定时器, ENABLE或DISABLE
Timer_Inilize(Timer4,&TIM_InitStructure); //初始化Timer4 Timer0,Timer1,Timer2,Timer3,Timer4
NVIC_Timer4_Init(ENABLE,NULL); //中断使能, ENABLE/DISABLE; 无优先级
}
/******************** 主函数**************************/
void main(void)
{
WTST = 0; //设置程序指令延时参数，赋值为0可将CPU执行指令的速度设置为最快
EAXSFR(); //扩展SFR(XFR)访问使能
CKCON = 0; //提高访问XRAM速度
GPIO_config();
Timer_config();
EA = 1;
P40 = 0; //打开实验箱LED电源
while (1);
}

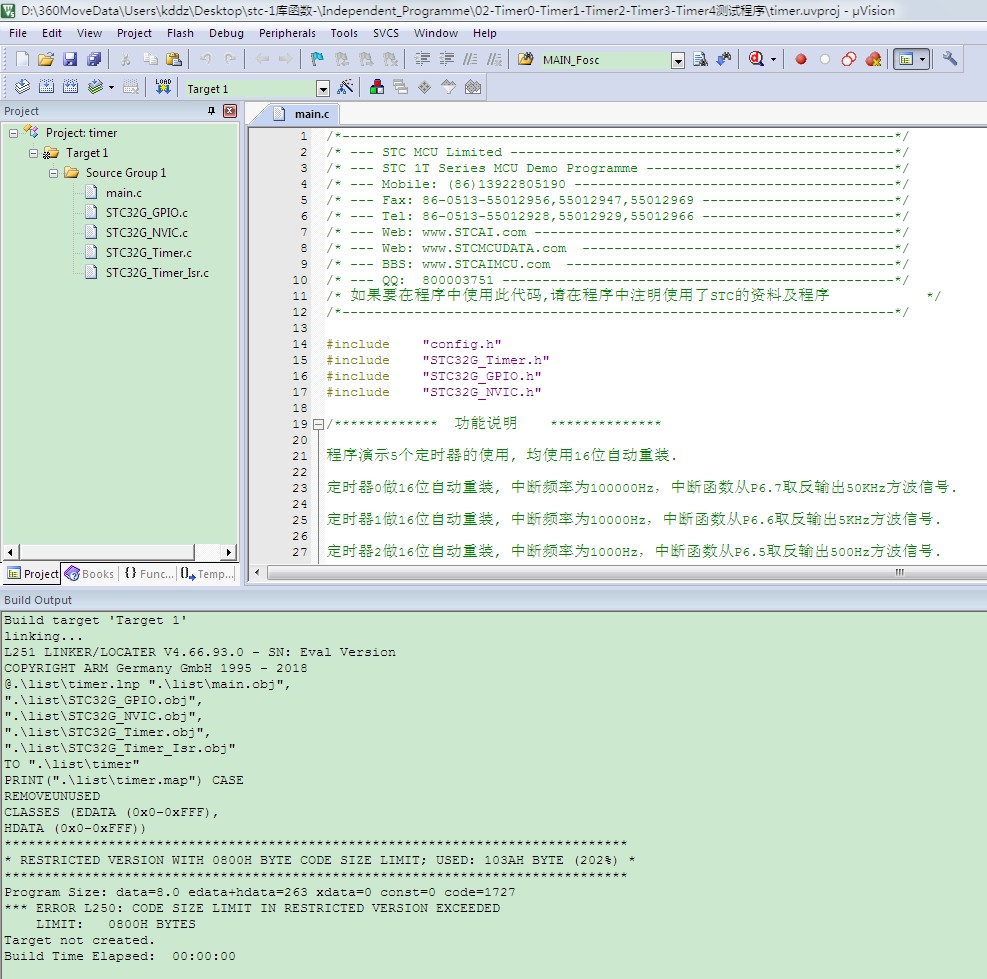

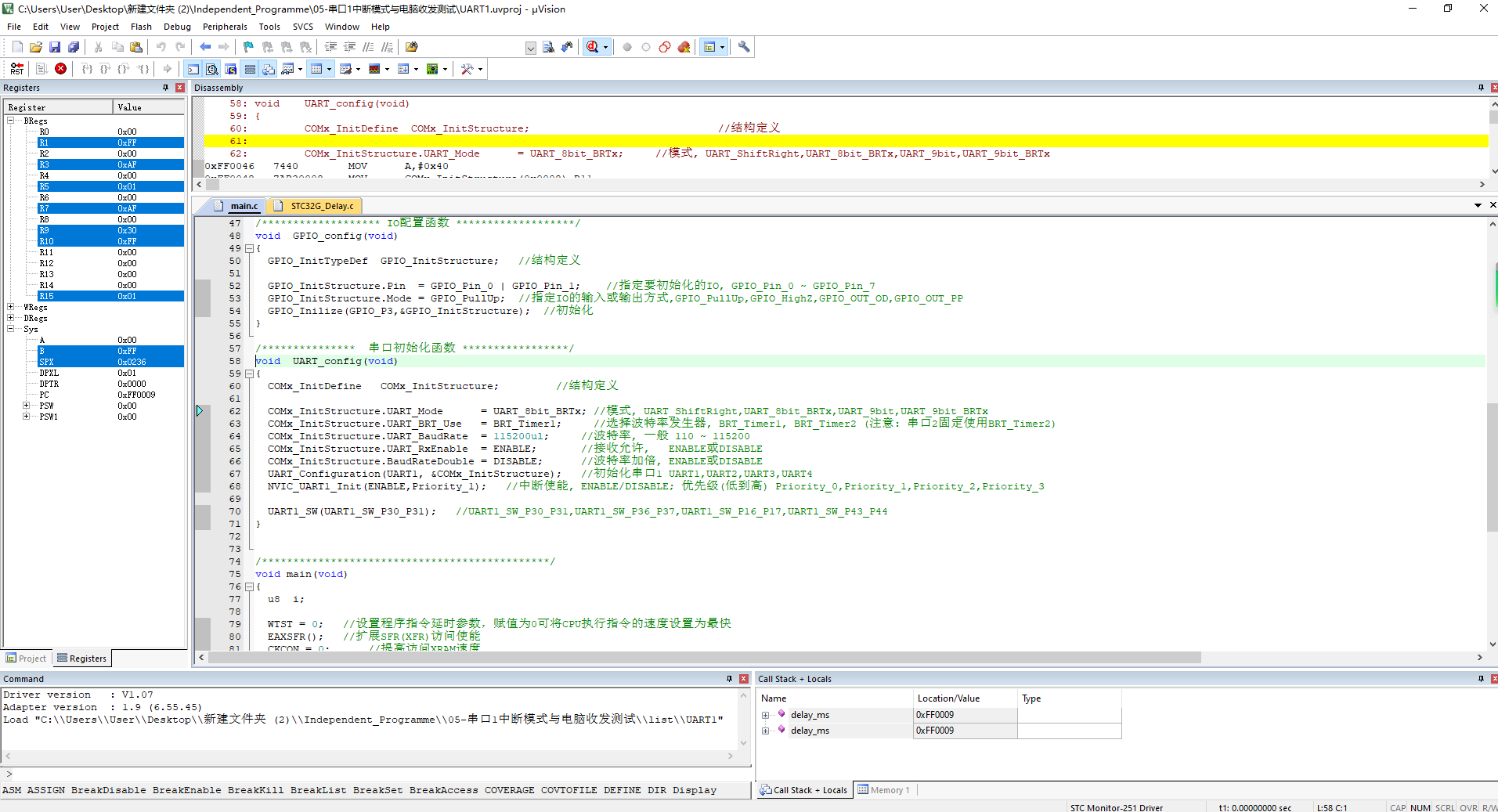

4.范例程序在KEIL中仿真成功：
5. STC-USB Link1D + 实验箱V9.6的硬件效果如下：
|
|
