前因：
最近开始啃OLED了，特别是初始化配置方面的。

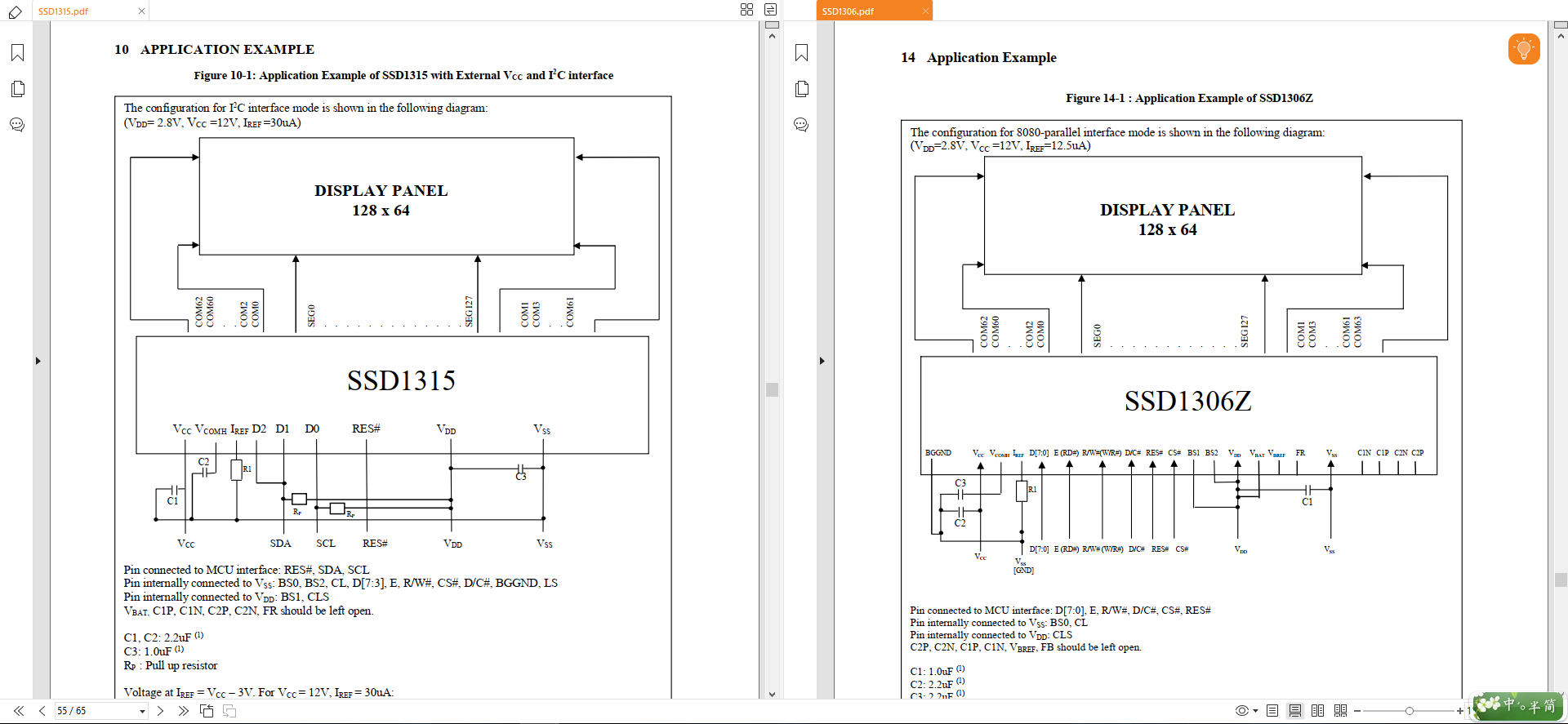

我看了SSD1306和SSD1315的手册，没发现有太大的区别，
但网上有人说在配置方面是有一些区别的，可是我没找到区别哈。
于是我就对照SSD1315的手册开始写配置文件，
从盒子里翻出来一个不知道什么时候买的OLED，就开始测试。
就在我测试的时候人傻了。

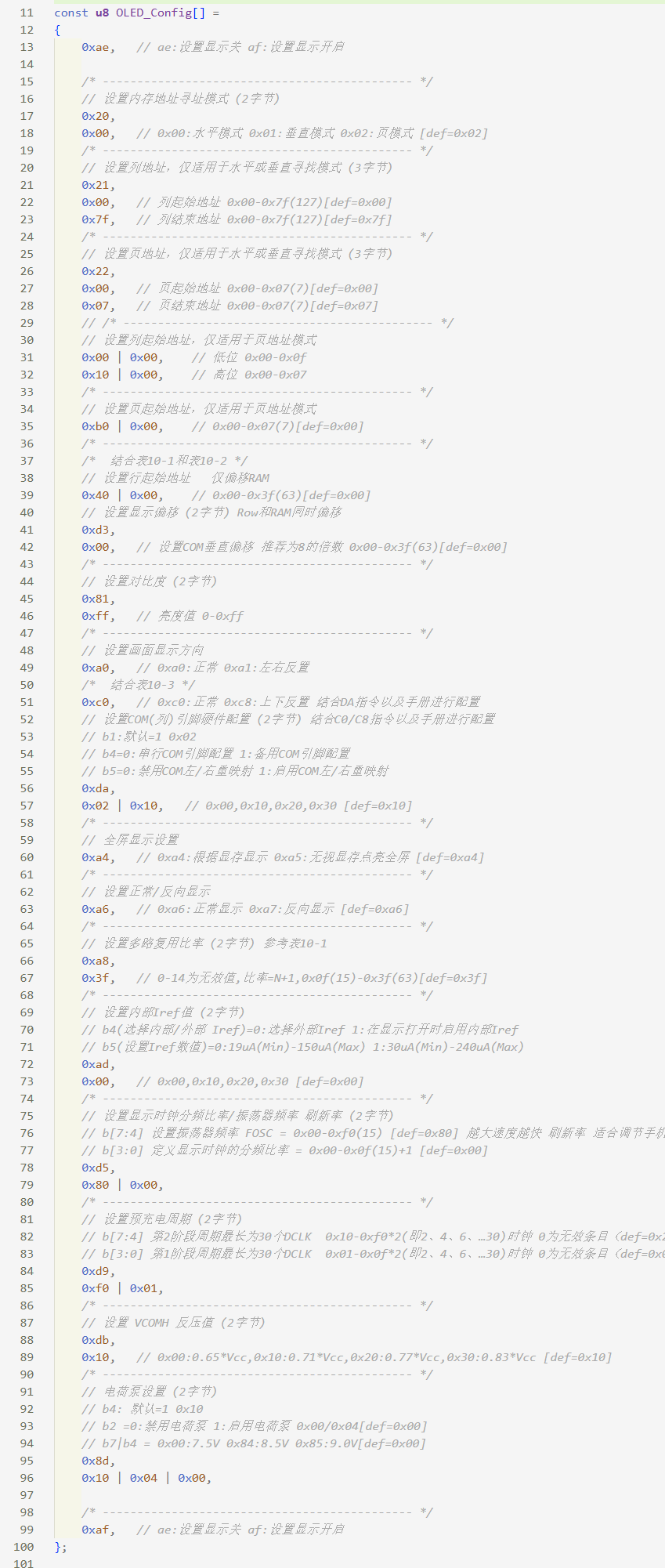

看看我这个配置信息：
1、水平寻址模式
2、窗口设置的是（0,0）-（63,127），即8*128
3、ROW行偏移和COM偏移为0
4、扫描方向也都是正常的，A0h和C0h
5、DA指令是b4=1,b5=0

6、其他的配置无关紧要了


屏幕实际显示画面：

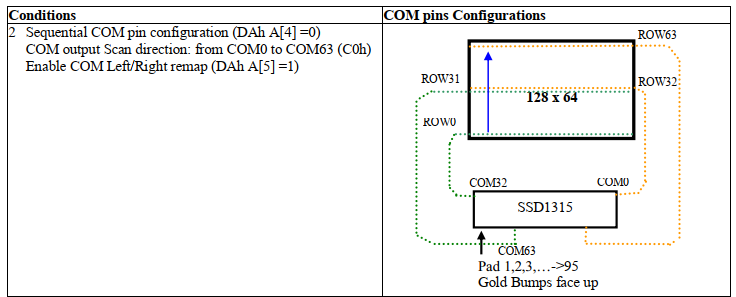

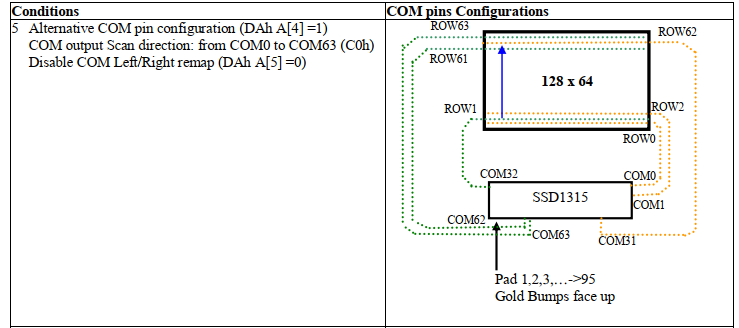

按照b4=1,b5=0,c0的配置，手册上应该是这样的：

配置理应刷新的顺序

配置理应刷新的顺序
但实际情况貌似是这样的：

配置理实际刷新的顺序

配置理实际刷新的顺序
而且貌似COM或者ROW偏移了负8个偏移量。
（PS：这里我结束后，调整了页范围为1-8，或设置了偏移量才正常。本文后续内容还是按无偏移量，页范围为0-7演示。）


看到这个结果，我顿时就懵了。怎么手册和实际情况对不上啊？
然后，猛然想到网上有人说过SSD1315和SSD1306的配置有不同的地方。
我就开始对比这部分的内容，也没发现有哪里不同的。


好嘛，离谱。我一怒之下买了SSD1315_I2C、SSD1306_I2C、SSD1315_SPI、SSD1306_SPI四种型号的OLED，
我还特地问了商家，拿到手后如何区分两种驱动的屏幕，


商家说，SSD1315的屏幕尺寸会小一点。



等了几天，收到货我又傻了。
商家貌似发错了，发了两个SSD1306的I2C屏幕给我。
不过从SPI的确实可以看出区别，SSD1315的尺寸小了，
而且软排线上面的丝印也写了1315的。

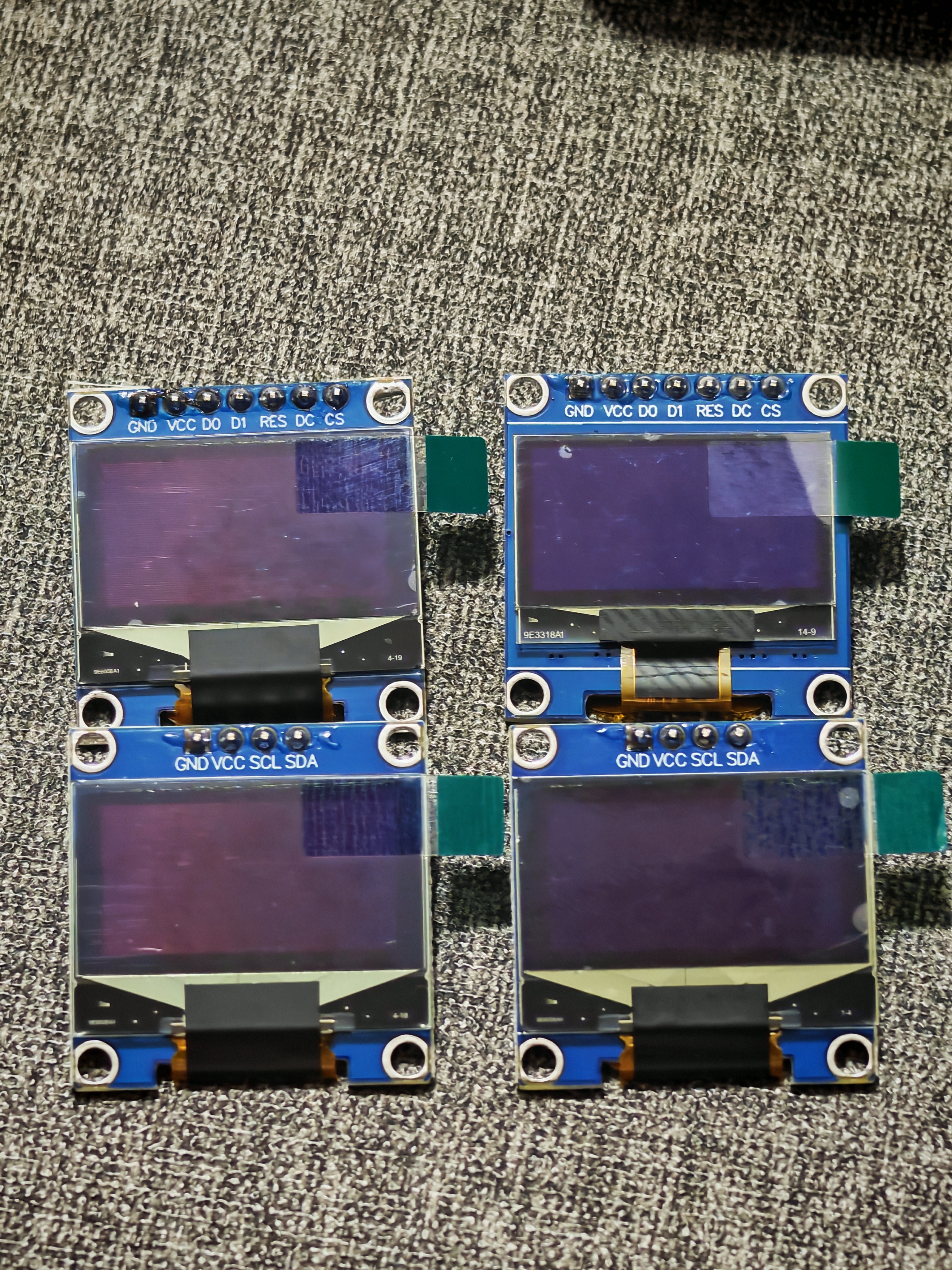

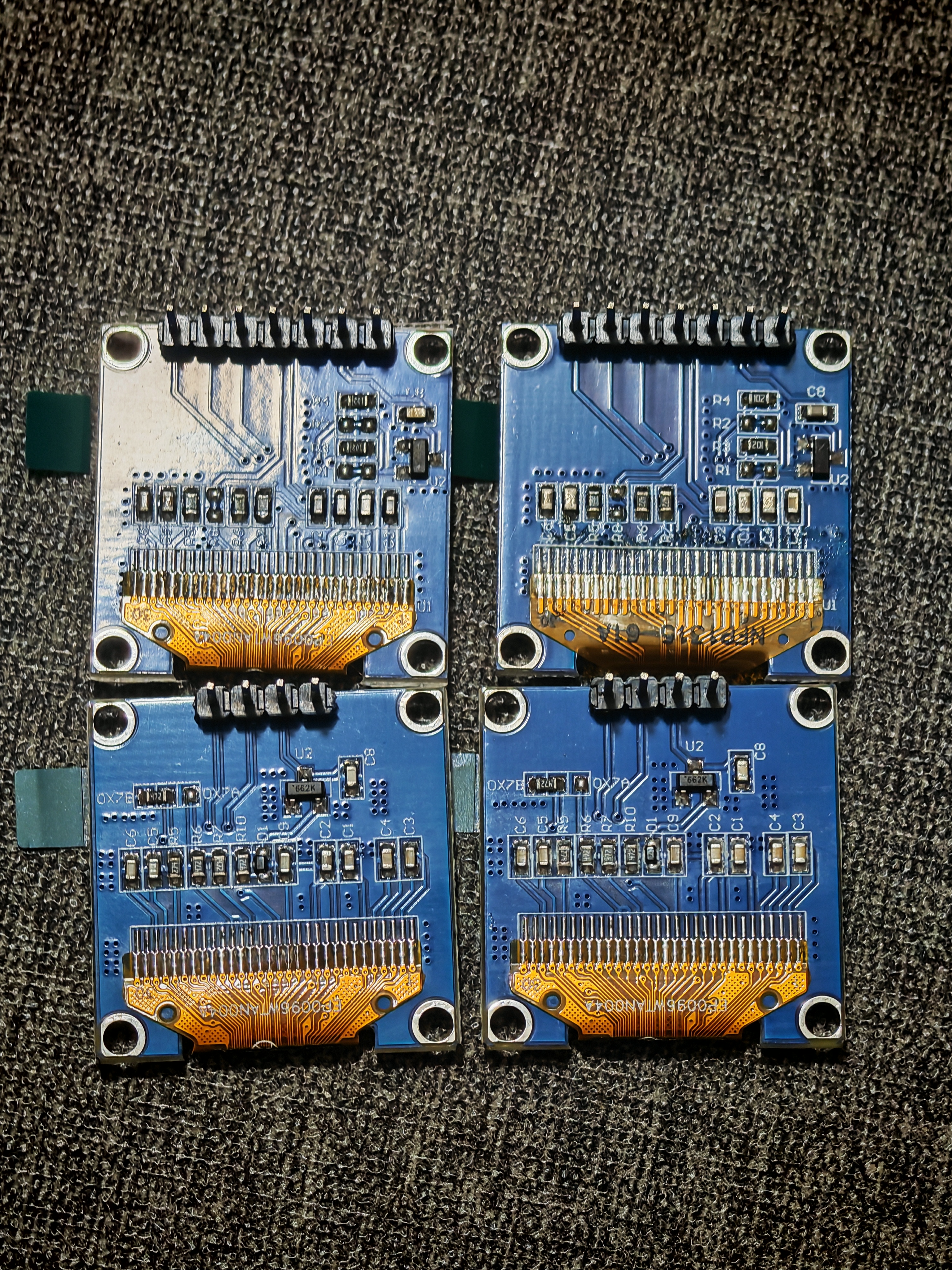

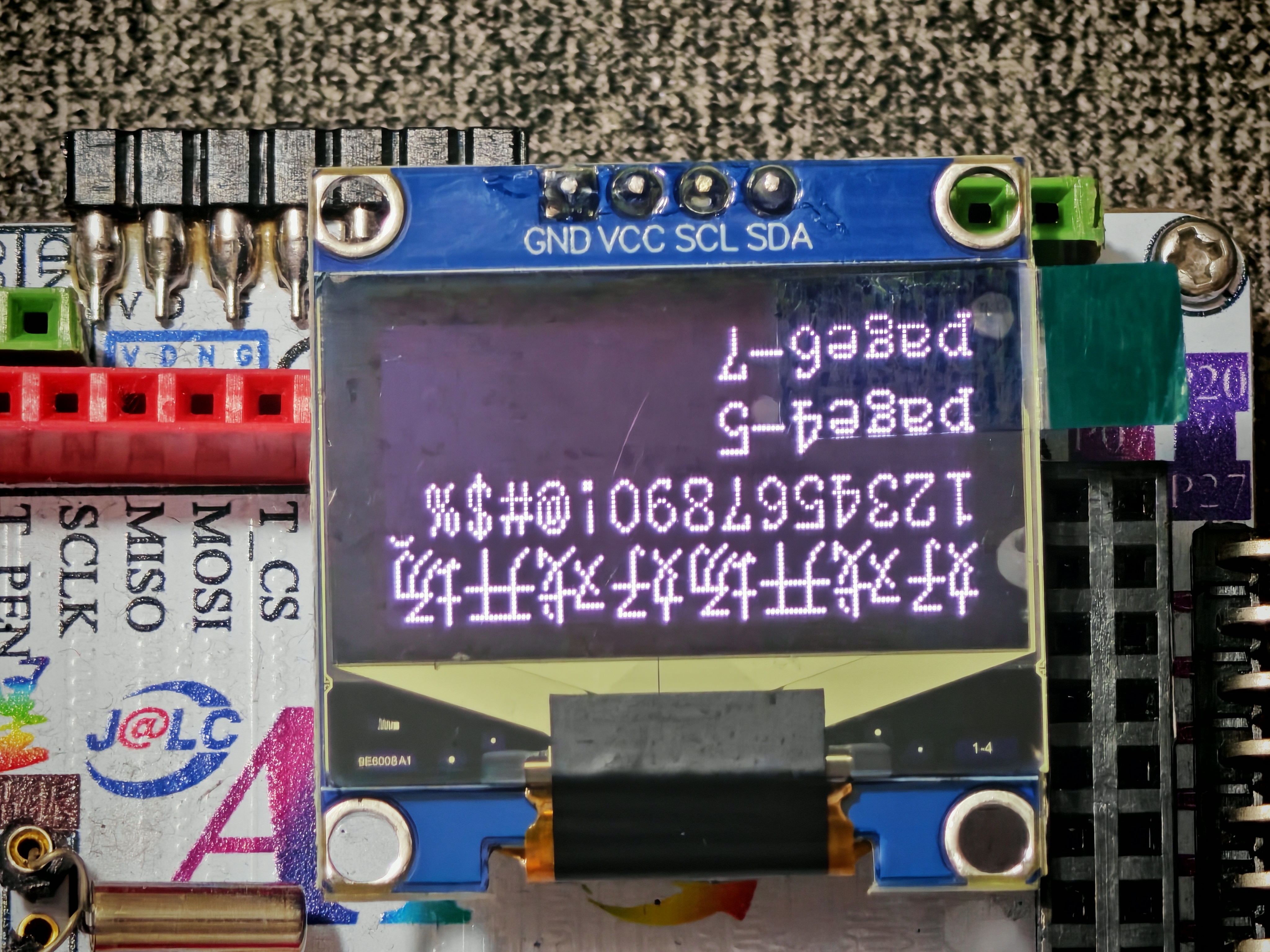

OLED对比图-4屏正面.jpg OLED对比图-4屏背面.jpg


那么，拿一个SSD1306_I2C的屏幕，对比一下我那个位置型号的OLED看看。
emmmm，很可能是1315的，因为尺寸确实小了一圈。

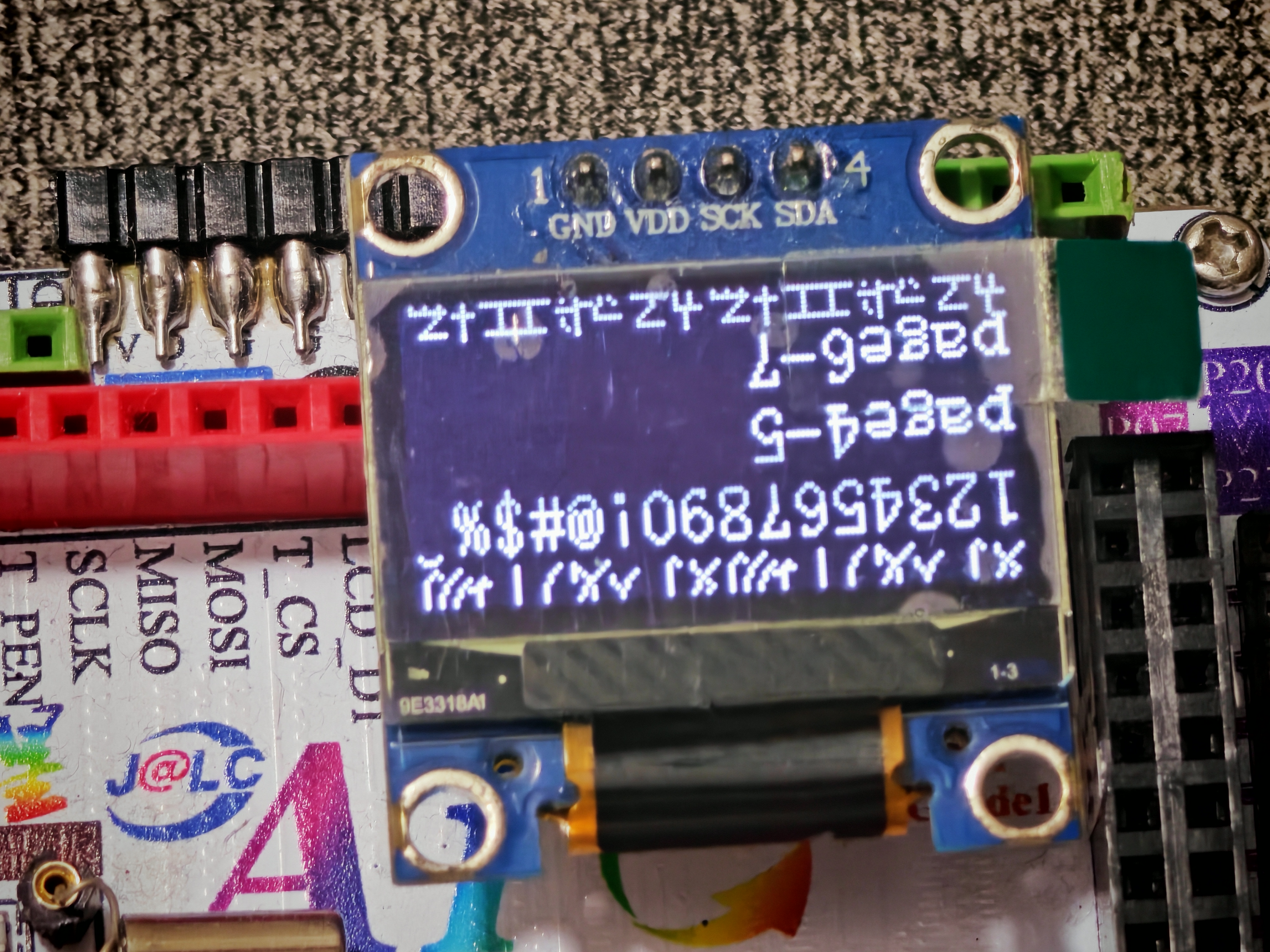

但后面的丝印是GM12864-41（PS:后面百度了一下，貌似就是1315！！！）

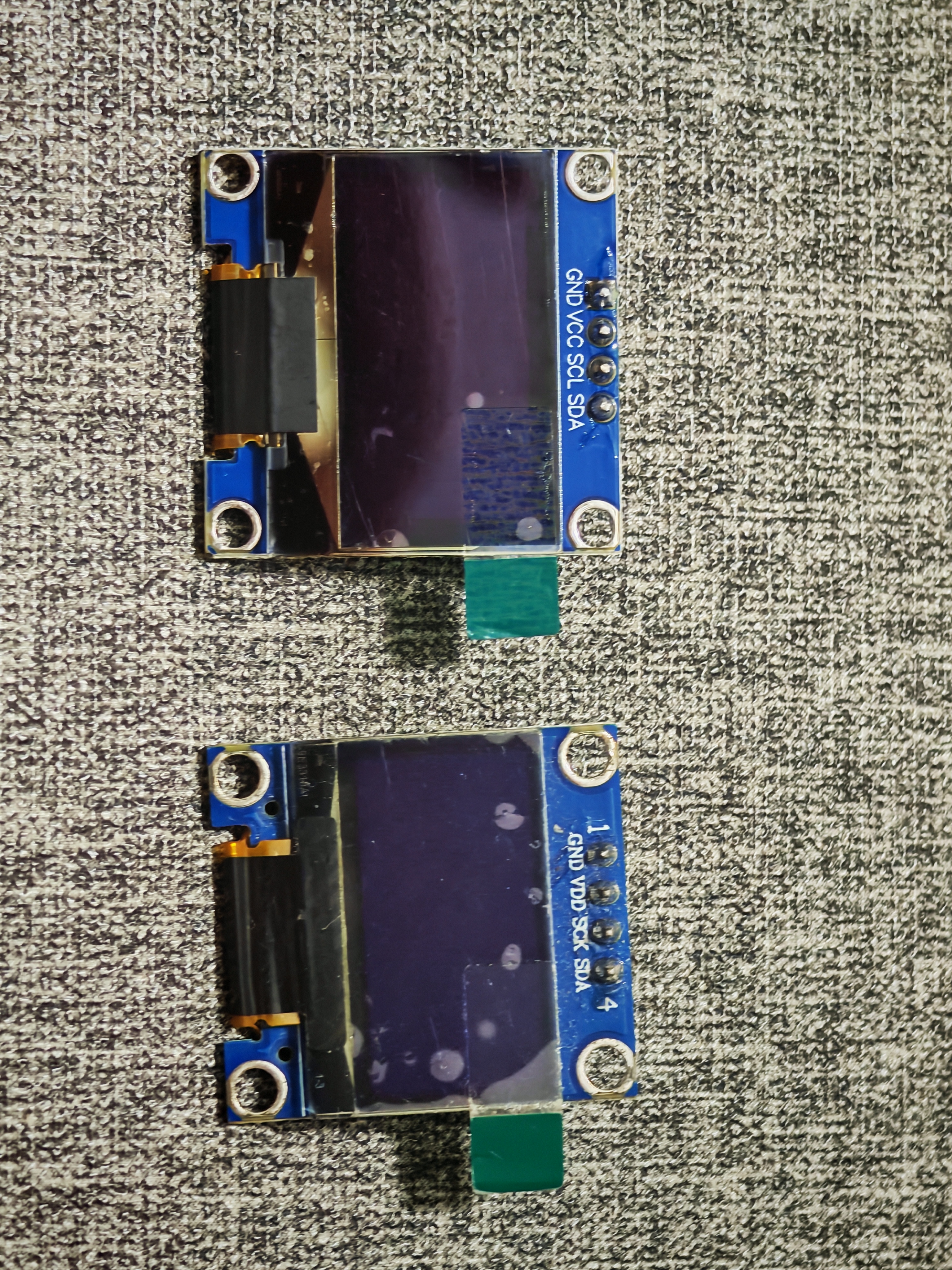

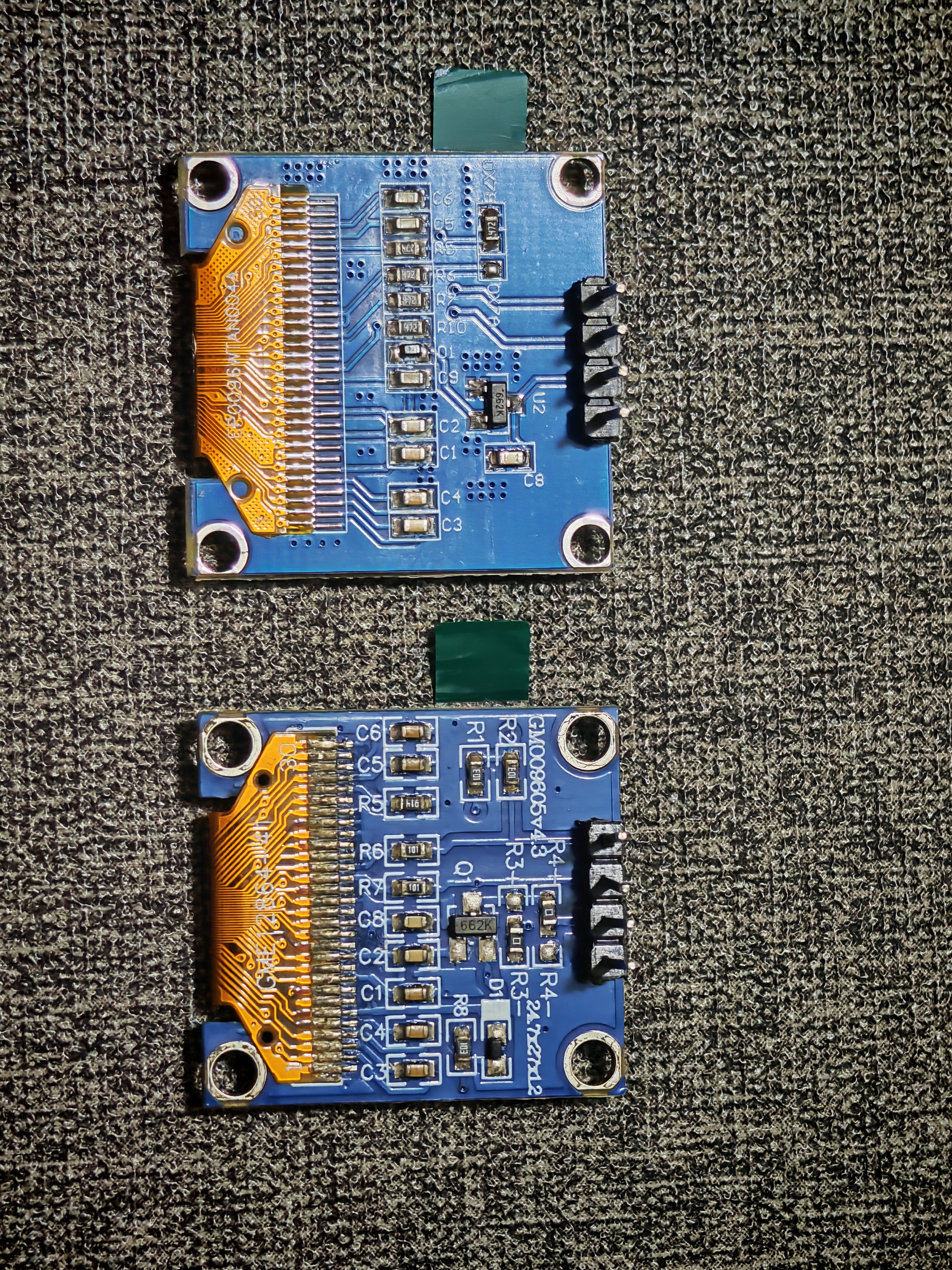

OLED对比图-正面.jpg OLED对比图-背面.jpg


同样的代码用新屏幕试一下看看
额，虽然DA指令还是对应不上，但知识D3偏移量正常了。算了就这样吧。



主要还是发个贴，提醒大家注意一下这些常用的配置问题。
如果出现显示不正常的可以看看这些配置，适当调整一下。
后面如果有空了，我再出一篇手册详解吧。


这里可以看一下，我用新屏幕尝试DA的4种显示效果，默认用C0，不上下翻转哈。

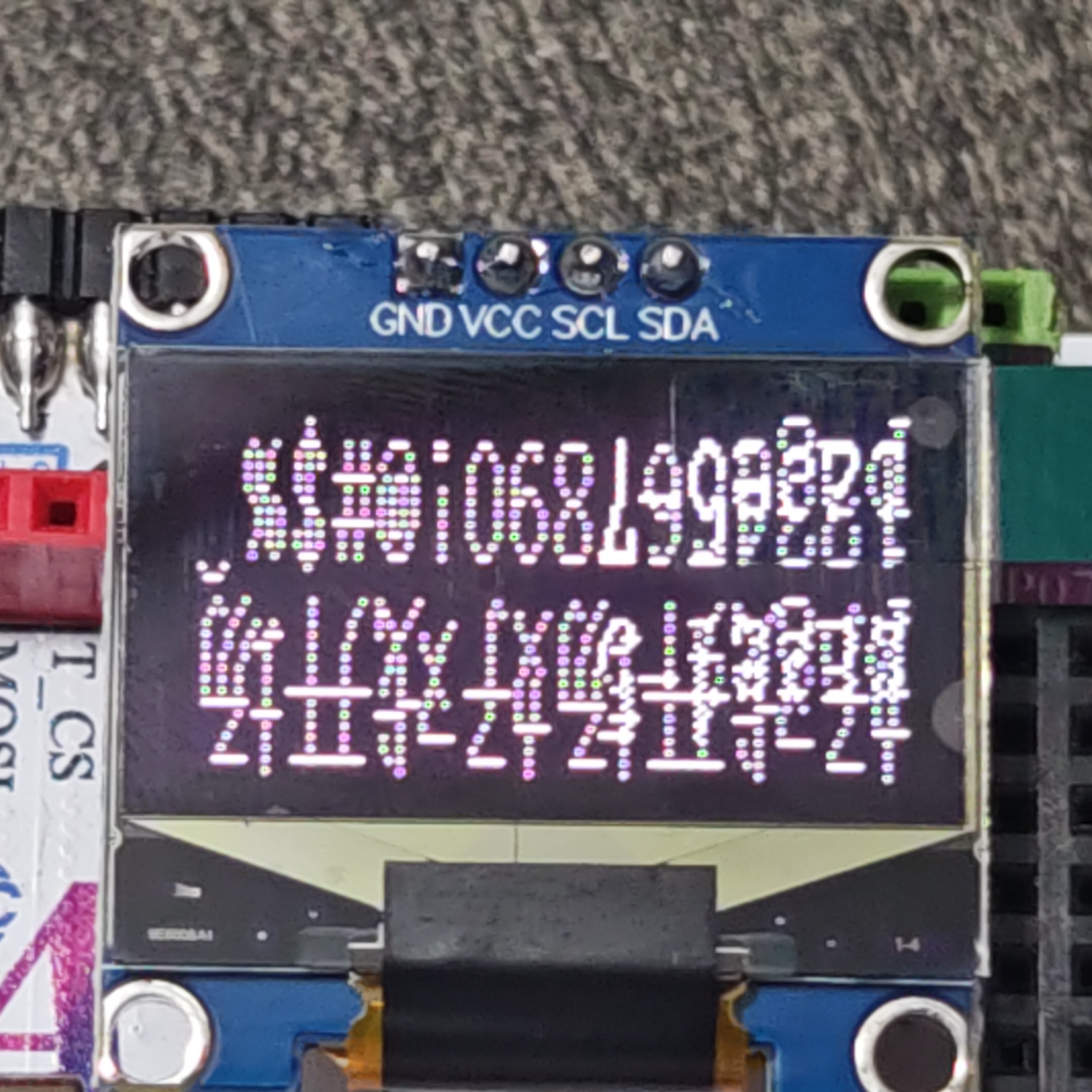

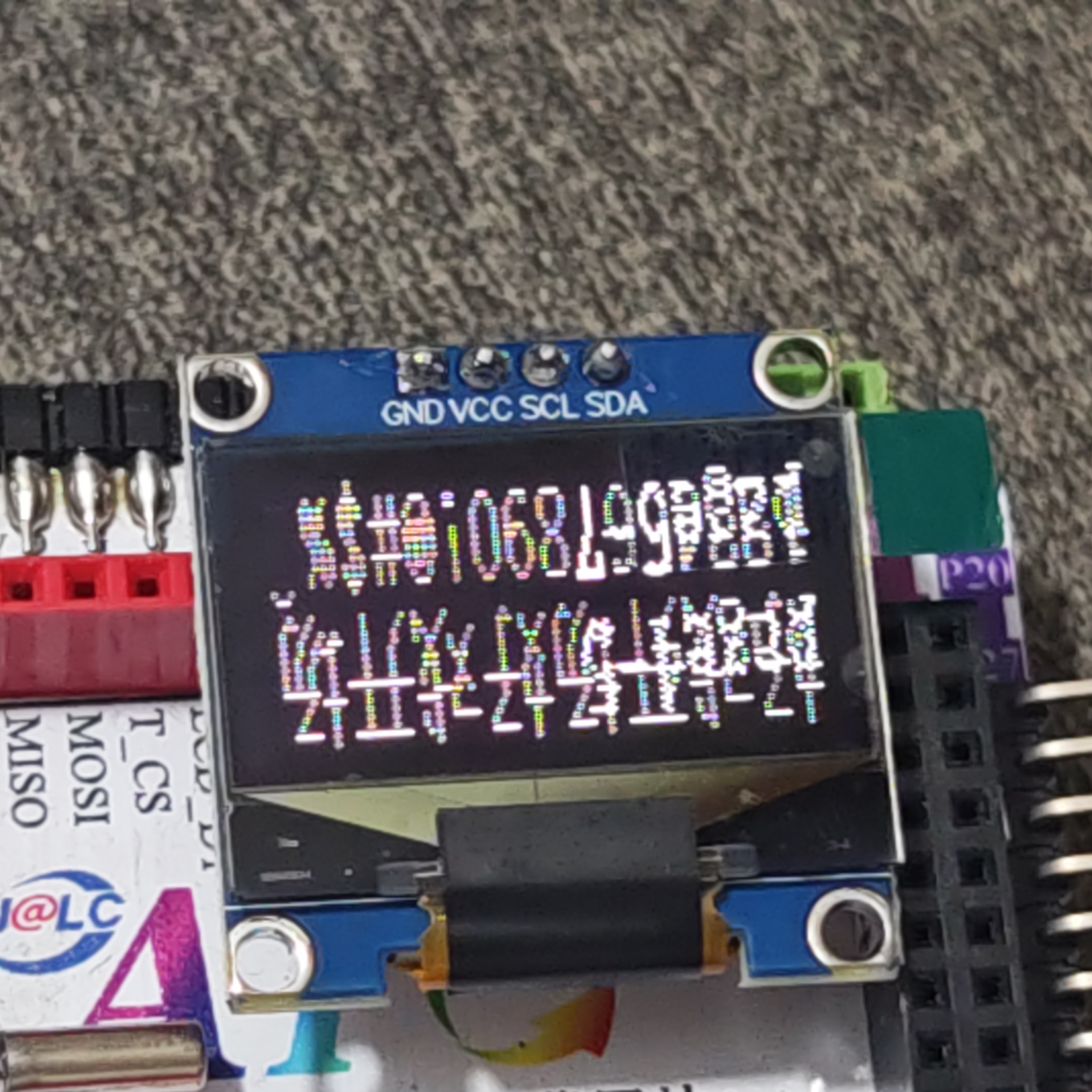

第一种：b4=0,b5=0

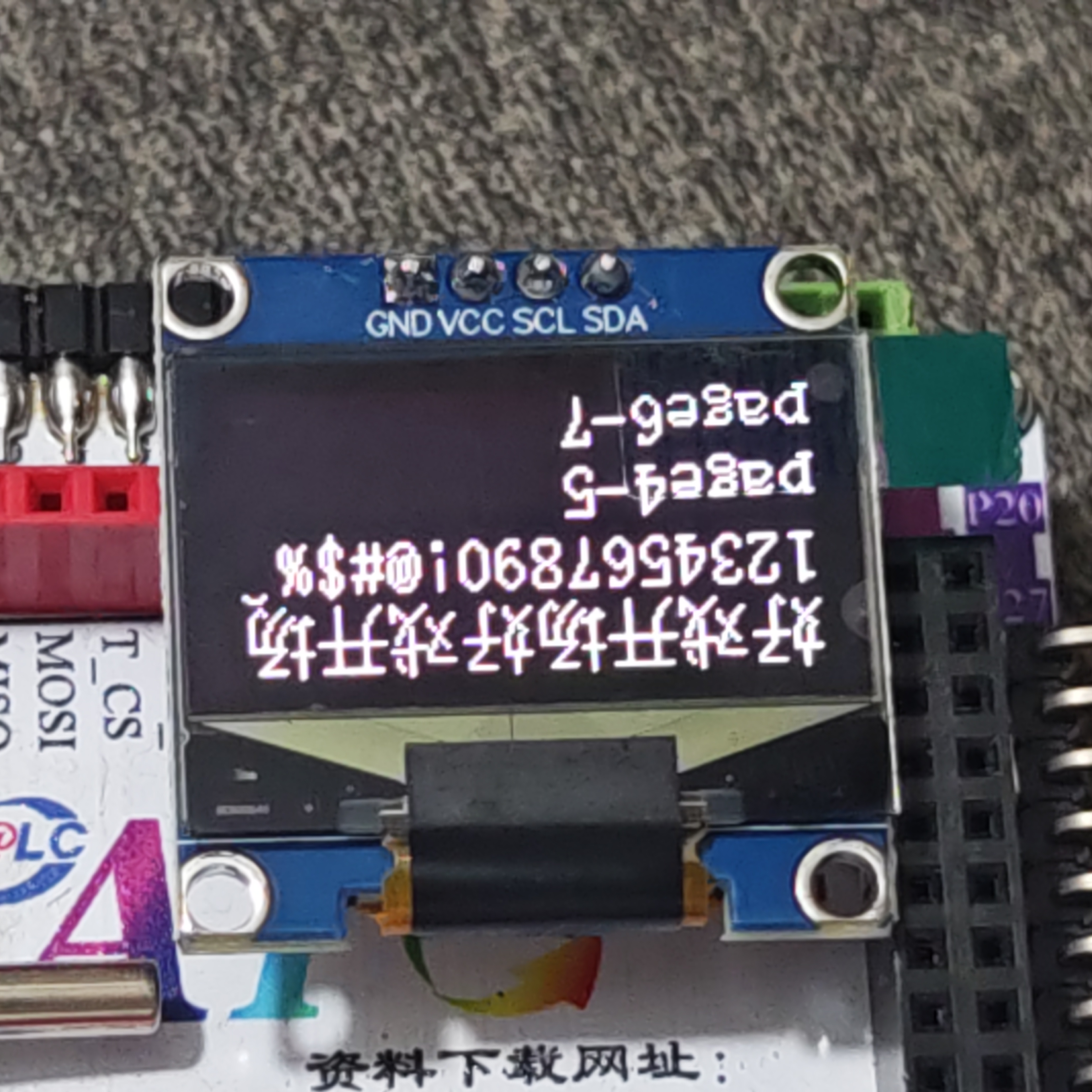

第二种：b4=1,b5=0（默认用这个）


第三种：b4=0,b5=1

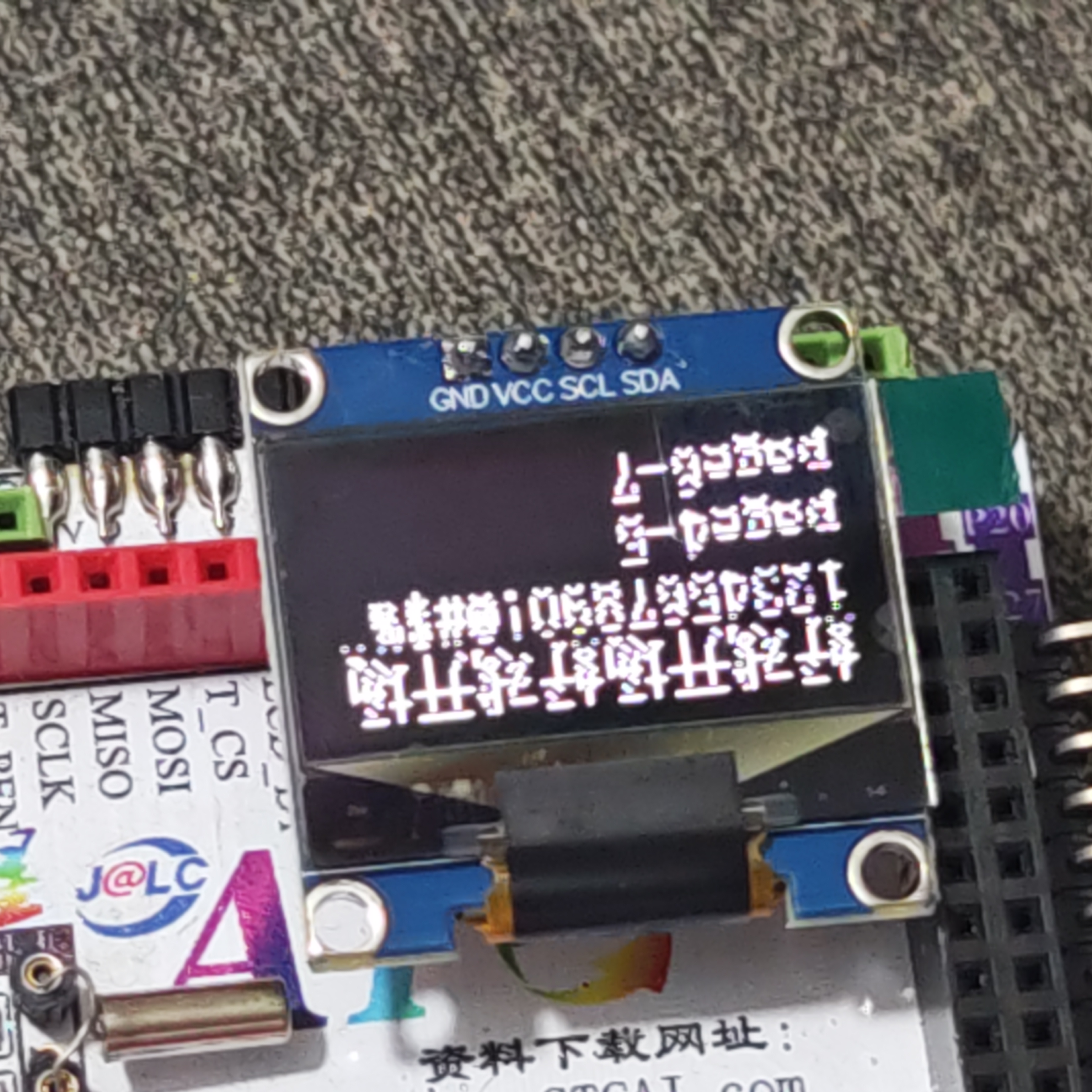

第四种：b4=1,b5=1

故事没有结局，遗忘是唯一的终点...
回复

使用道具 举报 送花
锦***
  • 打卡等级：以坛为家II
  • 打卡总天数：433
  • 最近打卡：2026-01-30 18:02:08
已绑定手机

37

主题

176

回帖

2292

积分

荣誉版主

Rbowlystar

积分
2292
发表于 2025-11-6 21:27:29 | 显示全部楼层

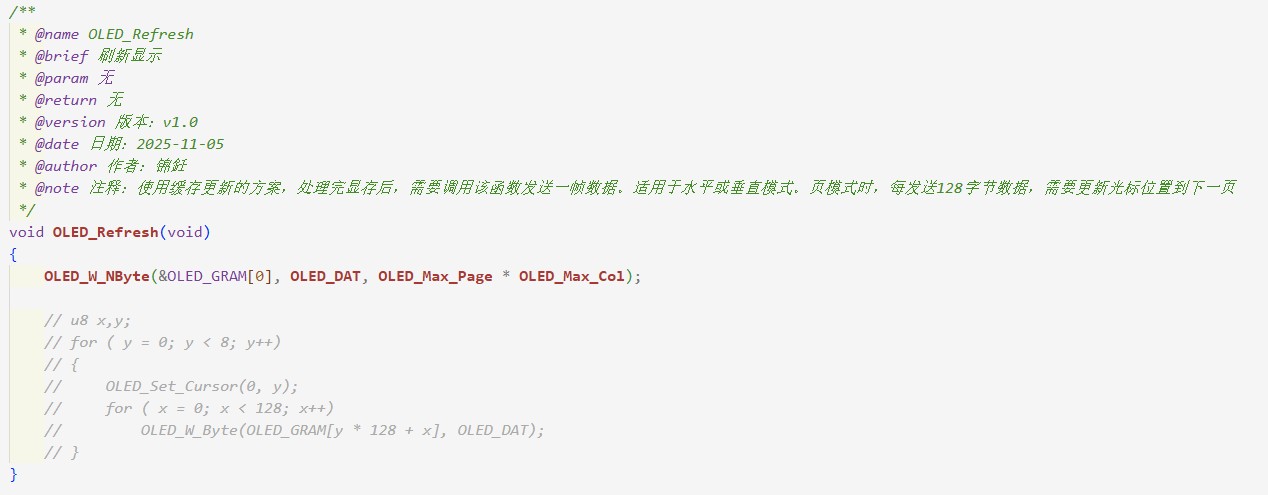

刷新是直接发送一帧1024字节数据

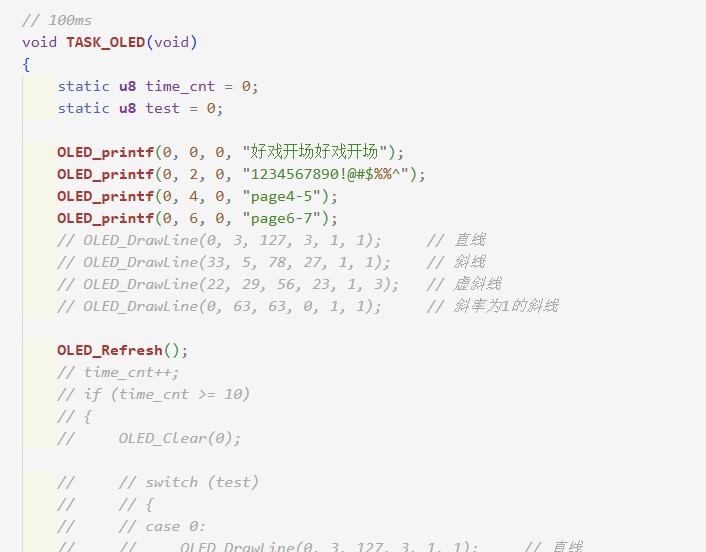

显示中英文
故事没有结局，遗忘是唯一的终点...
回复

使用道具 举报 送花
Debu***
  • 打卡等级：以坛为家III
  • 打卡总天数：724
  • 最近打卡：2026-03-18 07:56:47
已绑定手机

97

主题

7244

回帖

1万

积分

超级版主

积分
13791
发表于 2025-11-7 09:19:24 | 显示全部楼层
ITO布线的区别，和COG芯片型号无关，我测试只要ITO布线一致，两种型号的芯片程序是通用的

点评

锦***
很有道理，我看手册确实看不出有什么区别。应该是每个厂家的设计不同，如果显示出了问题，就根据自己屏幕的问题来微调一下即可。  详情 回复 发表于 2025-11-7 13:00
回复

使用道具 举报 送花
锦***
  • 打卡等级：以坛为家II
  • 打卡总天数：433
  • 最近打卡：2026-01-30 18:02:08
已绑定手机

37

主题

176

回帖

2292

积分

荣誉版主

Rbowlystar

积分
2292
发表于 2025-11-7 13:00:28 | 显示全部楼层
Debu*** 发表于 2025-11-7 09:19
ITO布线的区别，和COG芯片型号无关，我测试只要ITO布线一致，两种型号的芯片程序是通用的 ...

很有道理，我看手册确实看不出有什么区别。应该是每个厂家的设计不同，如果显示出了问题，就根据自己屏幕的问题来微调一下即可。
故事没有结局，遗忘是唯一的终点...
回复

使用道具 举报 送花
大***
  • 打卡等级：以坛为家III
  • 打卡总天数：712
  • 最近打卡：2026-03-23 04:23:24

39

主题

453

回帖

4348

积分

荣誉版主

积分
4348
发表于 2025-11-7 17:30:08 | 显示全部楼层
1、从外观上区分 SSD1306 和 SSD1315 很简单：SSD1306的软排线宽，SSD1315的窄。
所以上面四块屏幕里，
两块I2C的屏幕，都是SSD1306的；
两块SPI的屏幕，左边的是SSD1306的，右边的是SSD1315的。

========================================

2、看你的显示程序的显示效果也可以区分两个型号。
从上面的照片看，画面是正常显示的，也可以说明I2C的屏幕是SSD1306的。

原因挺扯淡的，这其实是卡了个SSD13016的BUG =。=;;;;;;

看SSD13016和SSD1315的数据手册里，关于 00h、10h、B0h 三条指令的章节，都有一句“ for Page Addressing Mode ”。
也就是说，在官方的设计中，00h、10h、B0h 三条指令只能用在【页地址模式】，用B0h指定页号（0-7），用00h和10h指定列号（0-127）；

而在【水平地址模式】下，原则上，则是用指令21h和22h，先框出一个指定大小的区域（如果不写21h、22h这两个指令，就是默认全屏区域），再向这个区域里连续发送数据，填满这个区域。
比如要在屏幕左上角显示一个8×16的字母“A”，先用 0x21, 0x00, 0x07, 0x22, 0x00, 0x01，划出一个8×16像素的区域，再把字母“A”的16个字模数据连续发送进去，字母“A”就显示出来了；
显示下一个字的时候，重复前面过程，重新画一个区域。这个过程跟TFT彩屏的显示方式是一样的。

现在看你的程序代码：
a. 初始化的时候，设置的是水平地址模式（0x20, 0x00），并且设置了显示区域是宽度128个列，高度8个页（0x21, 0x00, 0x7F, 0x22, 0x00, 0x07）；
b. 初始化的时候设置了0xB0，刷新屏幕的函数使用的发送数据的方式，是连续发送1024个数据。

这里的 a 是正确的。但是问题出在，同时使用了 a 和 b 。

在这一点上，SSD1306和SSD1315的显示效果就不一样了。

在水平地址模式下，如果使用了 21h、22h 设置区域，和 00h、10h、B0h 三条指令设置位置，
那么连续发送的数据个数，不能超出指令0x21设置的右边界。
否则从第二页开始，画面就会出现错位。

这就到了前面说的BUG问题了。
SSD1315是严格执行的这个规则的，如果用你的代码显示，会出现错位现象。
而SSD1306，虽然数据手册里也写着“ for Page Addressing Mode ”，但是在水平地址模式下，用了B0h指令之后，向全屏范围里连续发送超过128个数据，同样也可以正常显示。

这应该属于SSD1306功能不完善导致的区别，正好可以用来作为区分的方法之一。

https://www.stcaimcu.com/forum.php?mod=redirect&goto=findpost&ptid=18574&pid=178508

========================================

3. 除了上面第2点提到的功能不完善，还有几个表现可以用来区分SSD1306和SSD1315。

比如 滚屏指令 26h、29h。
从数据手册看出来，关于这两条指令的格式，
SSD1306的参数里有很多“Dummy Byte”，水平方向可以单独设置滚动；竖直方向不能单独设置滚动，只能竖直+水平一起滚动。
SSD1315的参数里，那些空指令位，都有了具体的数值，可以单独在水平或者竖直方向上设置滚动。

【OLED滚屏指令不好用？大概率是芯片型号没选对吧】
https://www.bilibili.com/video/BV1yi421C7Pk/


除此之外，设置屏幕对比度的指令 D5h ，在两种屏幕上的效果也有明显区别。
这个指令的参数，是从 0x00 （黑屏）到 0xFF（最亮）。
但是随着数值的渐变，在两种屏幕上，其中一个的亮度可以平滑变化，另一个则会在某个数值段时，亮度是跳变的。所以一试就可以知道了。











点评

锦***

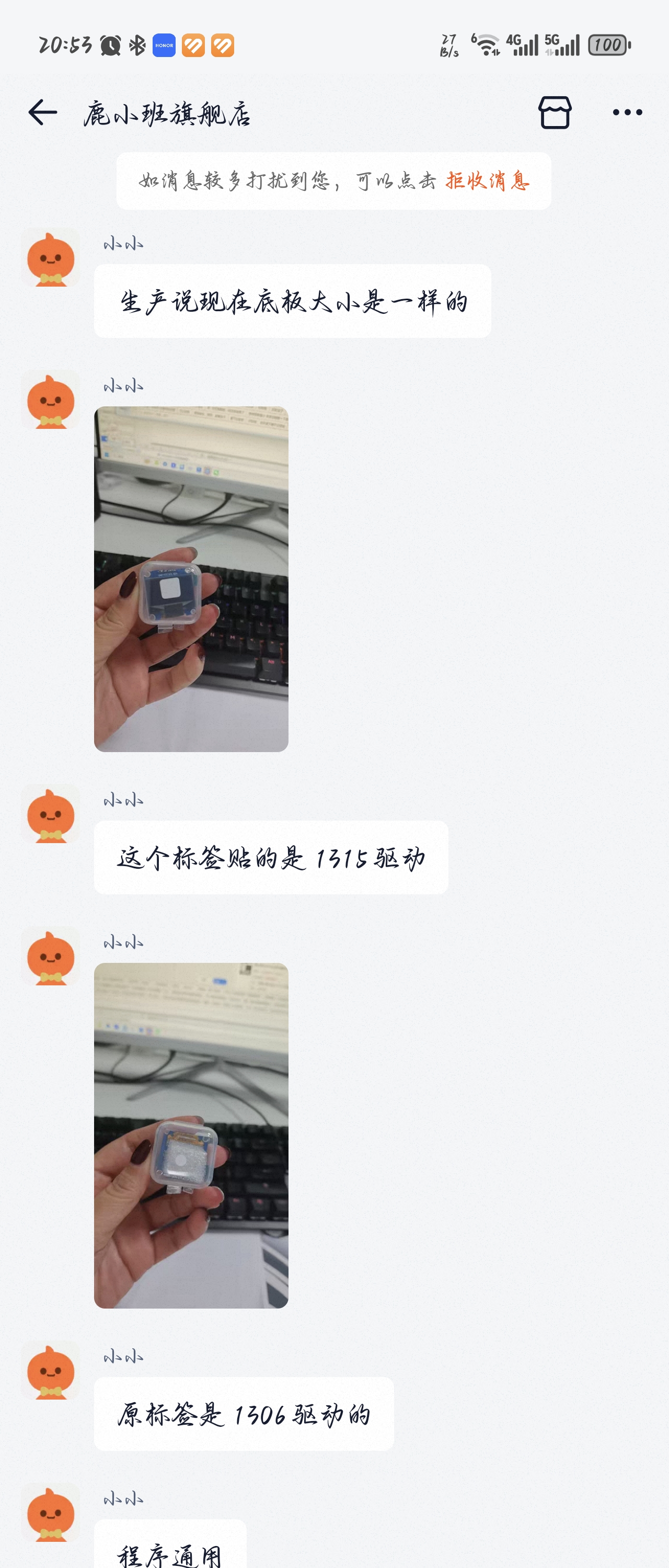

强，不愧是你哈哈哈。 但是我找商家理论，商家还是回复说是不一样的，反正现在两个屏幕混在一起我是完全分辨不出来了 [attachimg]120358[/attachimg] 不够同样的程序，一个屏幕亮一点，一个屏幕暗一点，也有点奇怪  详情 回复 发表于 2025-11-7 21:37
能体会到发现一个不理解的现象然后找原因然后要么解决掉问题要么被问题解决掉的那种快乐是我的幸运
回复

使用道具 举报 送花
网***
  • 打卡等级：以坛为家III
  • 打卡总天数：671
  • 最近打卡：2026-03-23 10:44:03

9

主题

614

回帖

4290

积分

论坛元老

积分
4290
发表于 2025-11-7 19:50:38 | 显示全部楼层
这情况太正常了,
不同厂家的玻璃显示段和位接线不同,行列偏移量也不同.严重时候直接黑屏点不亮.
所以使用时尽量选市场销量多用开的的品牌和型号,配置参数比较一致.
偏门型号最好向店家索要技术手册或者点亮例程.
回复

使用道具 举报 送花
锦***
  • 打卡等级：以坛为家II
  • 打卡总天数：433
  • 最近打卡：2026-01-30 18:02:08
已绑定手机

37

主题

176

回帖

2292

积分

荣誉版主

Rbowlystar

积分
2292
发表于 2025-11-7 21:37:04 | 显示全部楼层
大*** 发表于 2025-11-7 17:30
1、从外观上区分 SSD1306 和 SSD1315 很简单：SSD1306的软排线宽，SSD1315的窄。
所以上面四块屏幕里，
两 ...

强，不愧是你哈哈哈。
但是我找商家理论，商家还是回复说是不一样的，反正现在两个屏幕混在一起我是完全分辨不出来了

不够同样的程序，一个屏幕亮一点，一个屏幕暗一点，也有点奇怪了。

其次呢，我看手册写的“ for Page Addressing Mode ”之类的标语，以为是“仅页地址模式有效”的意思，没想到设置了水平模式还是有效控制了。

然后针对这个问题，我实验了也确实如你所说的那样

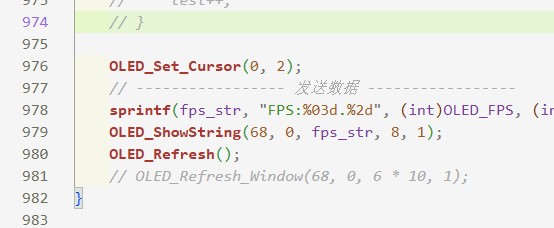

在刷屏前，我加了一句B0设置的指令，
在我的旧屏幕上（应该是1315的）确实出现了显示异常

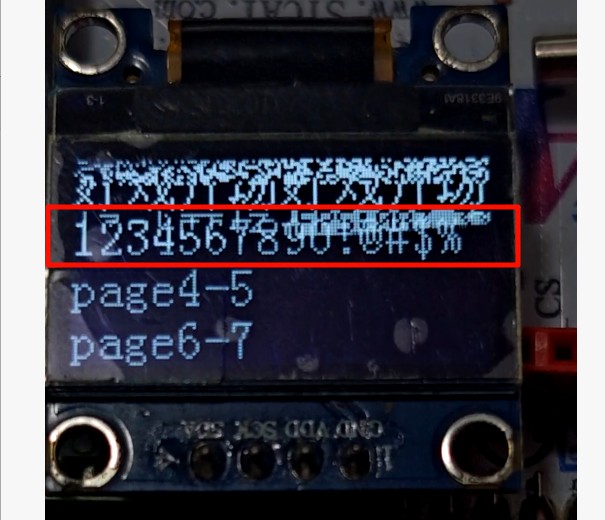

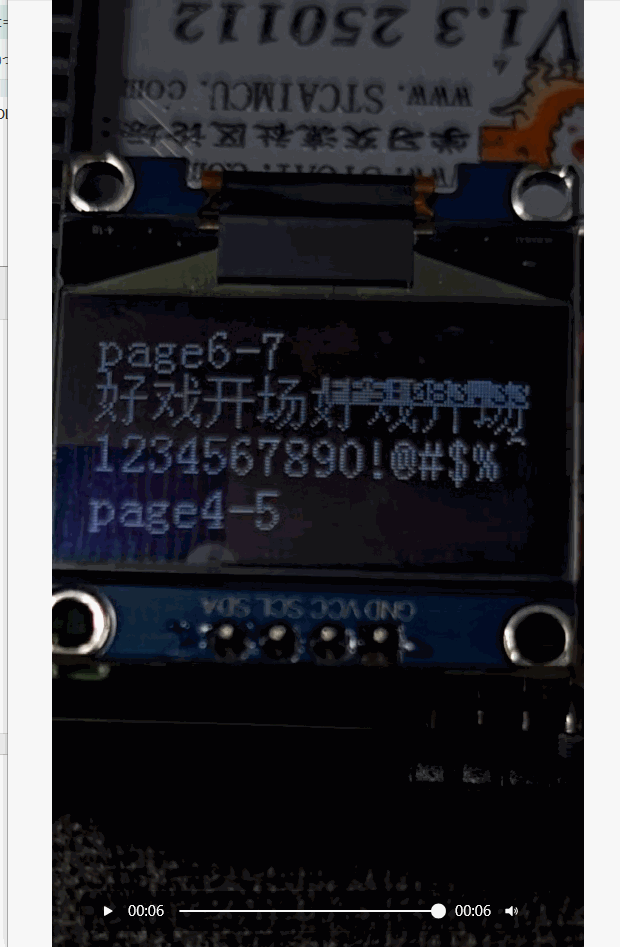

第1行的128列数据确实按B0设置的，在第3行显示了。
但后续的数据内容又还是在规定的地址显示。

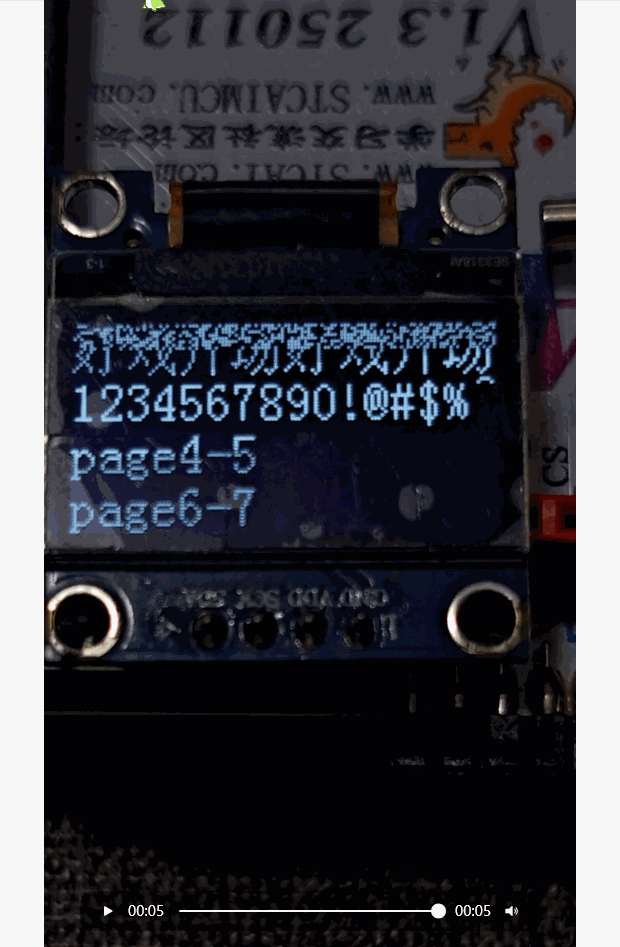

可以看到第1行的数据在第3行显示了，第1行由于没有数据内容，所以显示的是初始化后的花屏
